Clinic

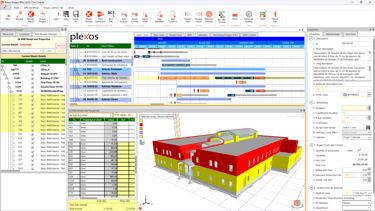

Figure 1. Example Project

The project clinic analyzed in this example has been developed using a federation with three models (Clinic_S, Clinic_A, and Clinic_Mechanical), within the Uniformat classification system.

The key points for organizing this project are:

  • Substructure:

    • Foundation footing (A1010110) and Foundation walls (A1010210) have been scheduled across four tasks linked with a one-to-one relationship between its sub-activities and imposed continuity.

  • Superstructure (Figure 2):

    • Columns (B1010250) have been structured into ten takts plus Roof construction (B1020260) in a single activity without continuity.

    • The Slab-on-grade (A1030110) has been divided into four takts and requires two completed takts of Columns (B1010250) to start.

    • Beams (B1010330) requires two completed takts of Slab-on-grade (A1030110) to start.

    • Joist Girders (B1010464) activity is divided into ten takts, as Slabs (B1010370), and linked with a one-to-one relationship between them.

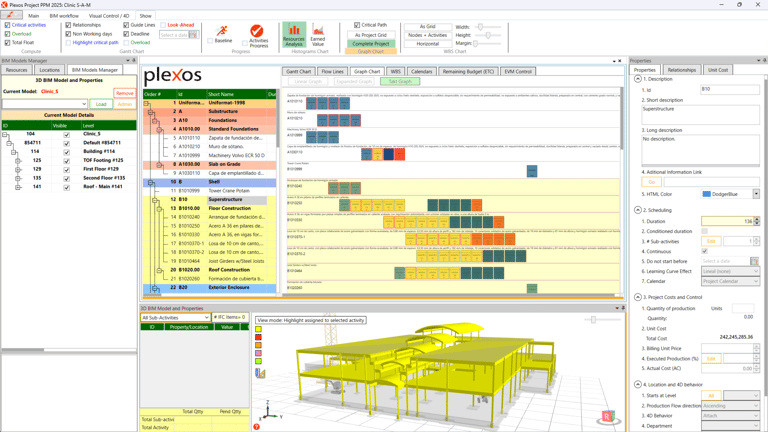

Figure 2. Superstructure highlighted in a Takt planning colored by levels

The remaining example is organized following the levels of the project (Figure 3), in such a way that three different takts divisions are used in one project, providing the most diverse organization possible according to the needs of the project phase.

Note that the model Clinic_Mechanical is not included in the federation.

You can include it by selecting it in the 3D manager, and and then editing its properties.

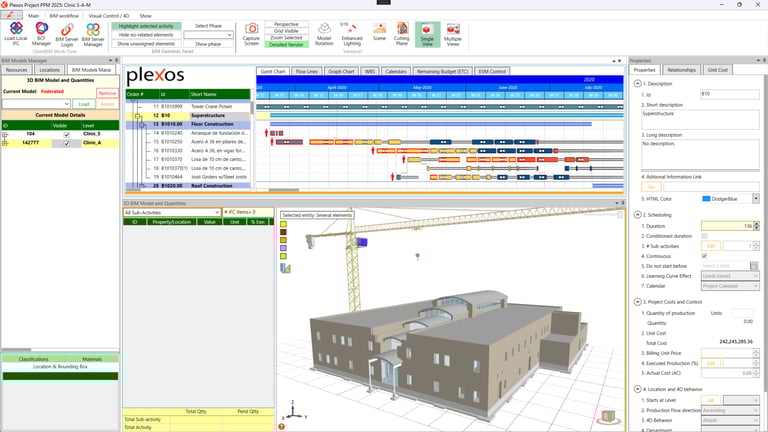

Figure 3. Second takt in Exterior walls (B2010150)

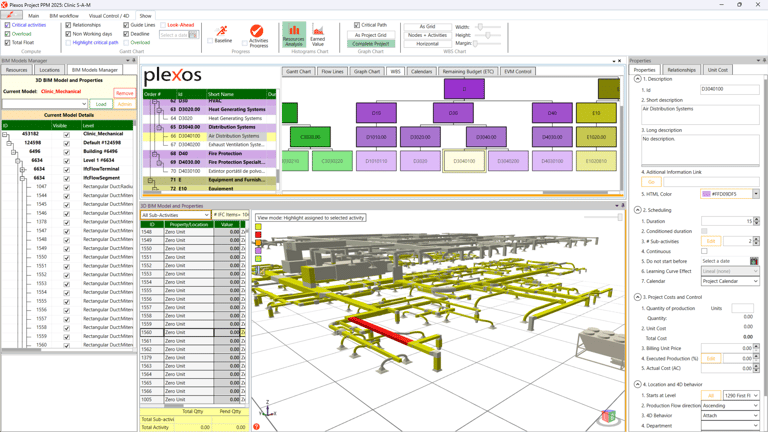

Figure 4. Air Distribution Systems Level 1 (D3040100)
